Nobsound NS-03G SUB Mini Mono Channel Digital Amplifier HiFi Home Subwoofer Power Amp 100W
With 19V/4.74A Power Adapter / US
$33.36
Sale price
$33.36
Regular price
$46.99
Skip to product information
Nobsound NS-03G SUB Mini Mono Channel Digital Amplifier HiFi Home Subwoofer Power Amp 100W
$33.36
Sale price
$33.36
Regular price
$46.99
Warm tips
< data-mce-fragment="1">
- This is the latest updated version, simplify the circuit, upgrade the components and greatly improve the sound quality.
Features
- Adopting classical TPA3116 amp IC, class D amplification, max output power can reach 100W(4Ω load), easily to drive most passive subwoofers and match perfectly with them.

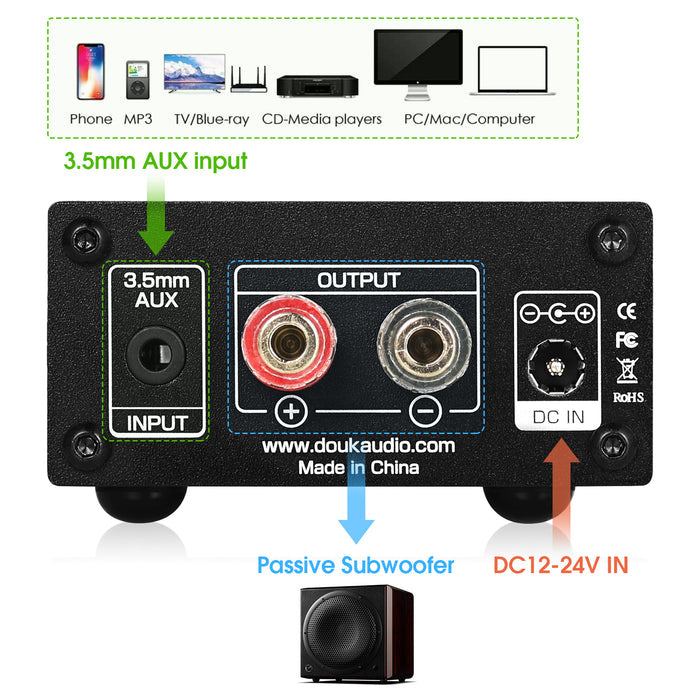

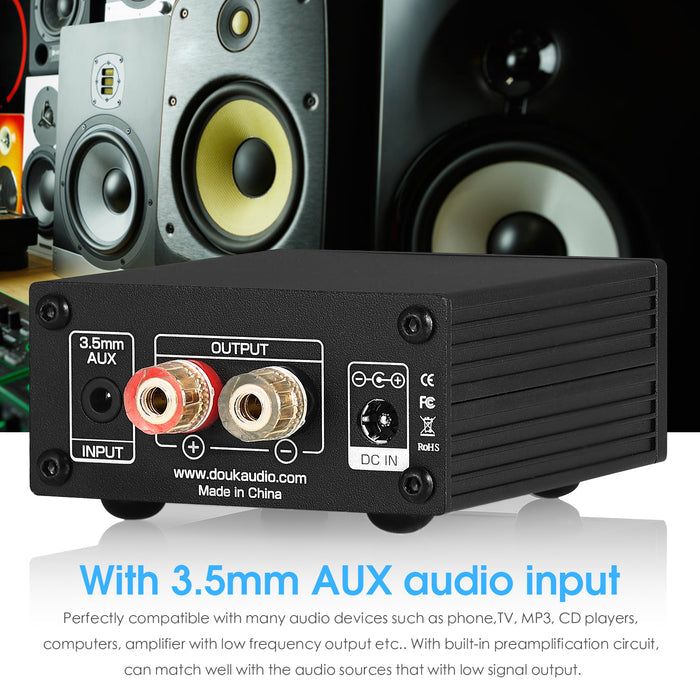

- With 3.5mm AUX audio input, perfectly compatible with many audio devices such as phone,TV, MP3, CD players, computers, amplifier with low frequency output etc.. With built-in preamplification circuit, can match well with the audio sources that with low signal output.
- Reasonable circuit, concise wiring layout and perfect protection, no sparks no shock. Adopting TL072 op amp with ultra-low distortion and dynamic balanced, the sound is very smooth and natural.

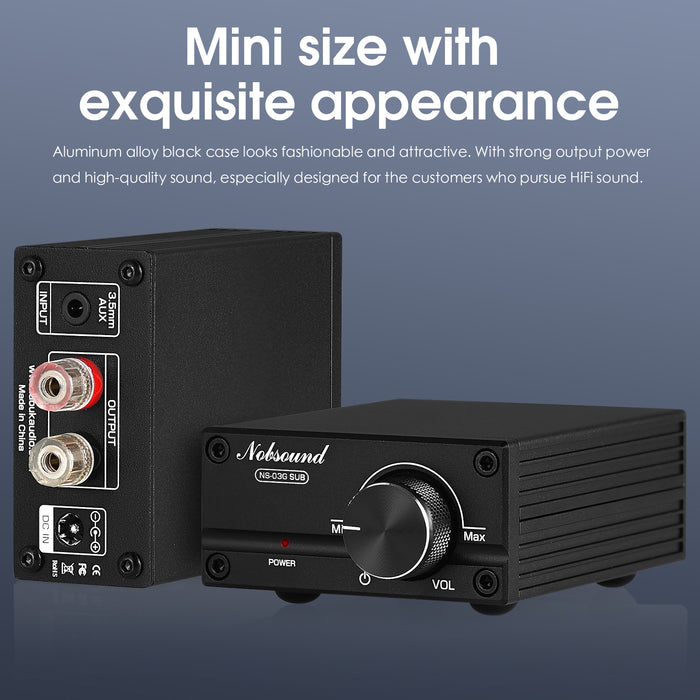

- Mini size with exquisite appearance, aluminum alloy black case looks fashionable and attractive. With strong output power and high-quality sound, especially designed for the customers who pursue HiFi sound.
Parameters
- Brand: Nobsound
- Model: NS-03G SUB
- Audio input: 3.5mm AUX
- Audio ouput: banana speaker jacks
- Number of channel: mono
- Chip: TPA3116D2
- OP amp: TL072
- Max. output power: 100W
- Frequency range: 20Hz-180Hz
- THD: ≤ 0.01%
- SNR: ≥ 118dB
- Input sensitivity: ≤ 280mV
- Matched subwoofer impedance: 4-8Ω
- Working voltage: DC 12V-24V
- Dimensions(W*D*H): 69*88*33mm / 2.72*3.46*1.30in
- Package dimensions(W*D*H): 150*150*50mm / 5.91*5.91*1.97in
- Net weight: 190g / 0.42lb
- Package Weight(Without power supply): 310g / 0.68lb
Package Weight(With power supply): 610g / 1.34lb

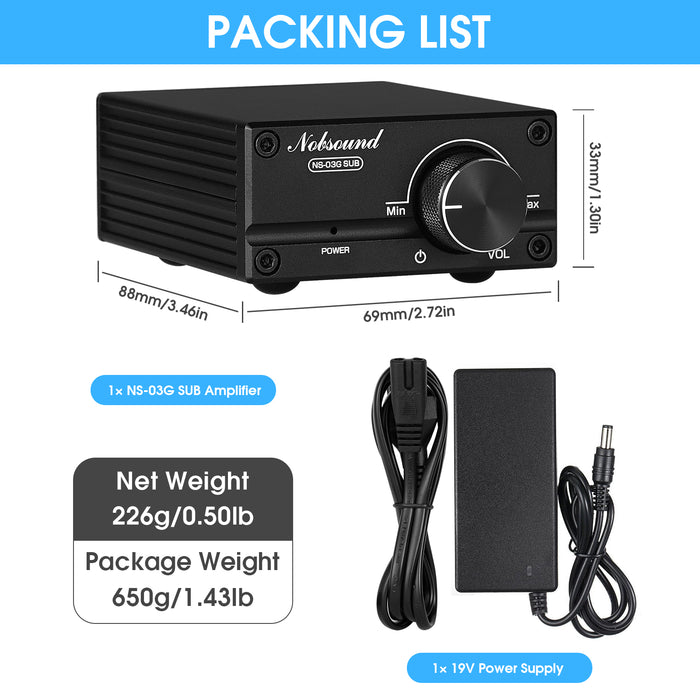

Packing List
- 1× NS-03G SUB Amplifier
- 1× User Manual
- 1× 19V Power Supply(Optional)
