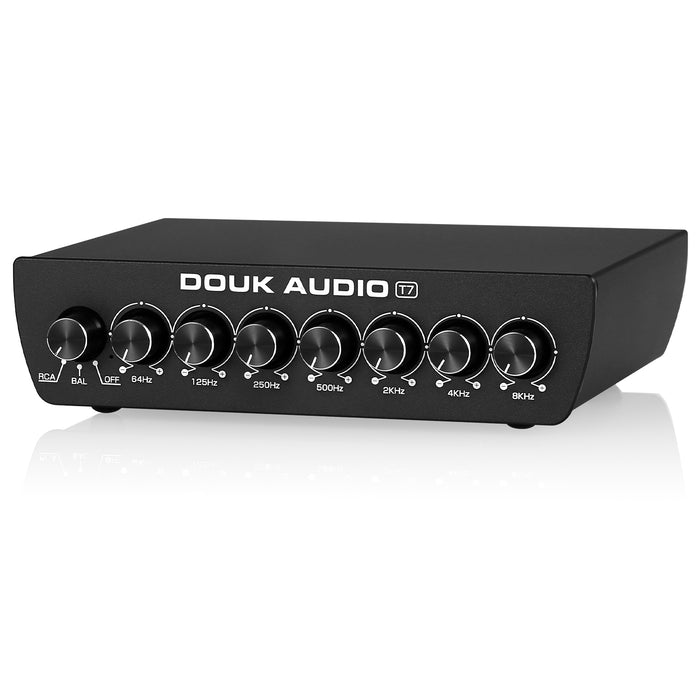

Douk Audio T7 7-Band Equalizer Balanced XLR / RCA Preamp for Home Amplifier

Warm Tips
1. T7 without volume control knob, it will output the rated level.
2. XLR and RCA output will output at the same time.

Features

• 7-band EQ equalizer: With independent and rich frequency band control (64Hz/125Hz/250Hz/500Hz/2KHz/4KHz/8KHz), within -6dB to +6dB range, T7 can compensate for the defects of speakers and sound field by adjusting 7-band high, middle and low frequencies, and modify various sound sources. The timbre and loudness also can be changed to achieve different sound effects.

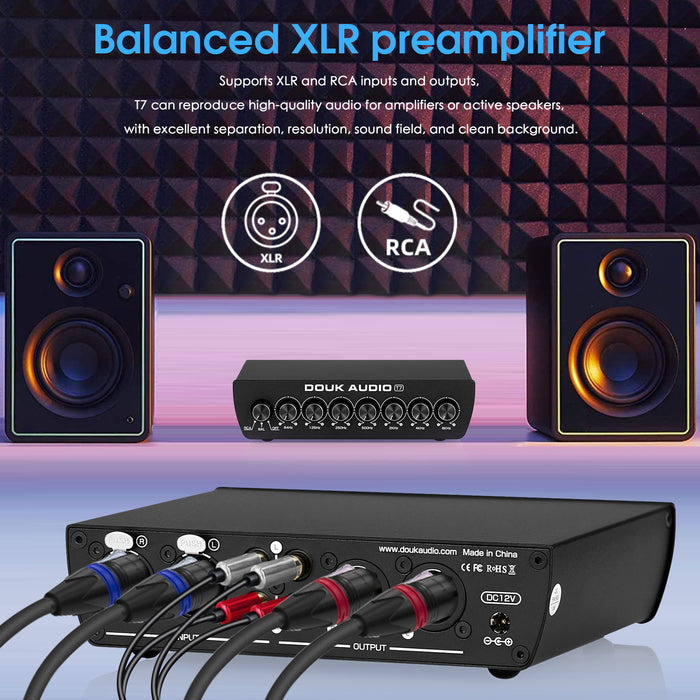

• Balanced XLR preamplifier: Supports XLR and RCA inputs and outputs, T7 can reproduce high-quality audio for amplifiers or active speakers, with excellent separation, resolution, sound field, and clean background.

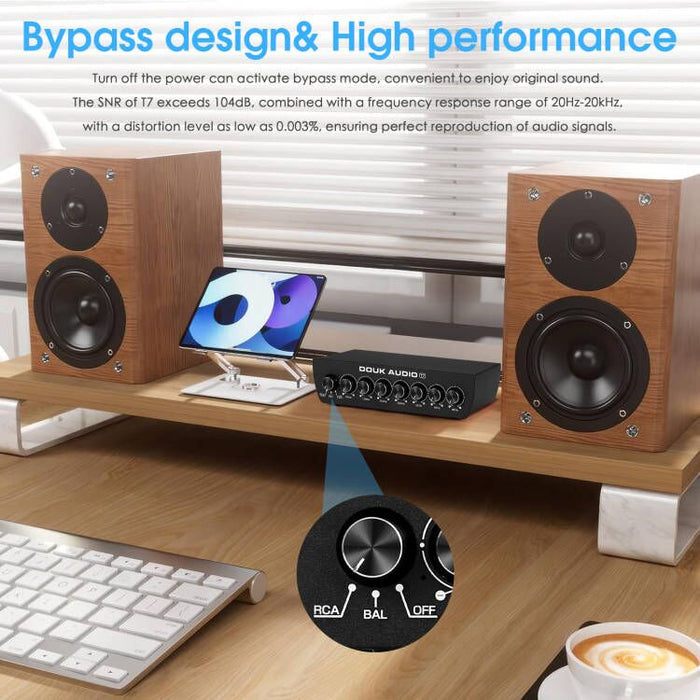

• Bypass design & High performance: Turn off the power can activate bypass mode, convenient to enjoy original sound. The SNR of T7 exceeds 104dB, combined with a frequency response range of 20Hz-20kHz, with a distortion level as low as 0.003%, ensuring perfect reproduction of audio signals.

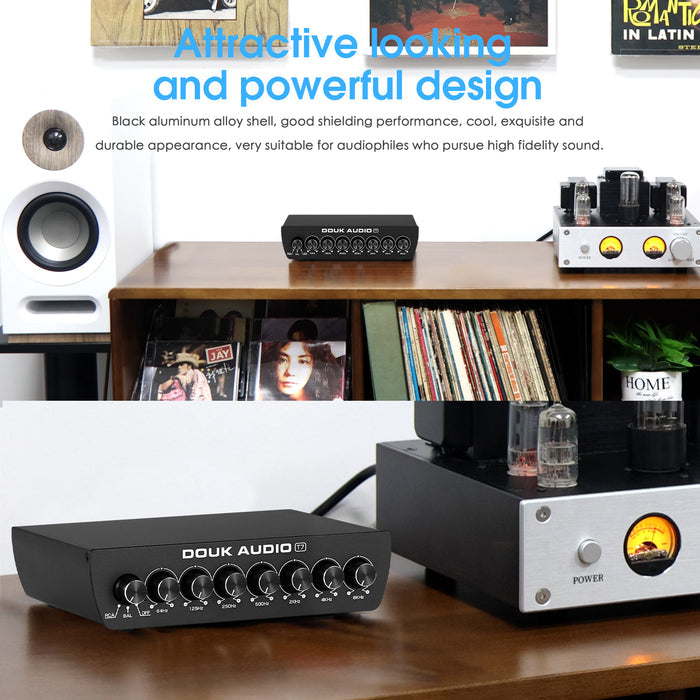

• Attractive looking and powerful design: black aluminum alloy shell, good shielding performance, cool, exquisite and durable appearance, very suitable for audiophiles who pursue high fidelity sound.

Parameters

• Model: Douk Audio T7

• Audio input: single-ended RCA / balanced XLR

• Audio output: single-ended RCA / balanced XLR

• Frequency response: 20Hz～20KHz(±1dB)

• Frequency band: 64Hz / 125Hz / 250Hz / 500Hz / 2KHz / 4KHz / 8KHz

• RCA input sensitivity: 0.775Vrms

• RCA output level: 1.2Vrms

• BAL input sensitivity: 1.5Vrms

• BAL output level: 3Vrms

• THD: 0.003%

• SNR: ≥104dB

• Working voltage: DC12V (≥1.5A)

• Dimensions(W*D*H): 152*126*42mm / 5.98*4.96*1.65in

• Net weight: 700g / 1.54lb

• Package weight: 1.0kg / 2.20lb

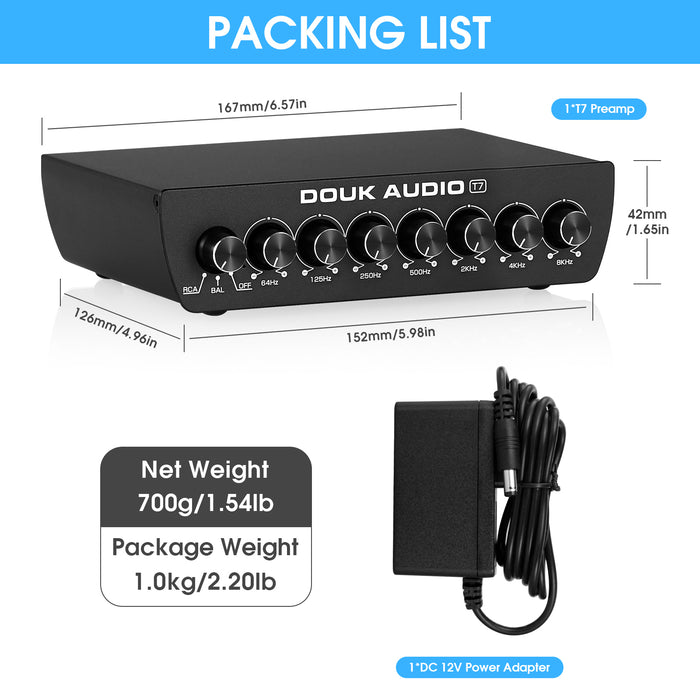

Packing List

• 1*T7 Preamp

• 1*DC 12V Power Adapter
